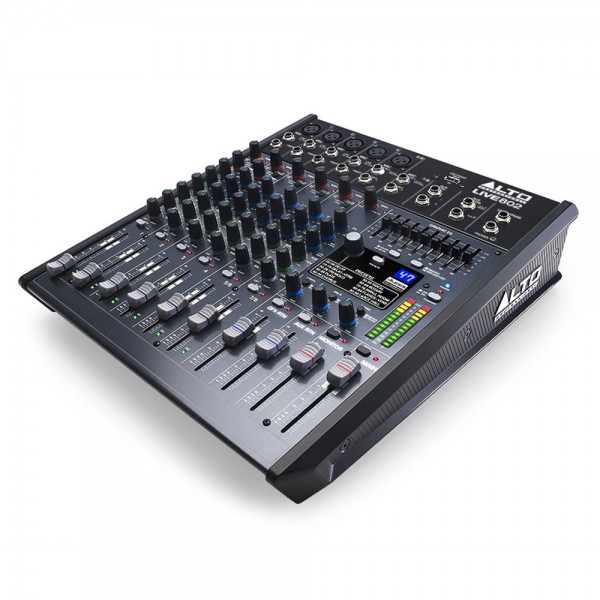

Alto Live 802 8 Channel USB Mixer with DSP - Secondhand

Full Description

Sound quality's a priority

High-quality sound and DSP tools are both rolled into a single package called Live 802. Each mic channel uses high-grade preamps to ensure the best quality audio reproduction. And you'll get punchy, high-headroom sound at all times, allowing you to mix with clarity. In addition, the built-in analog compression gives you increased levels of control over the sound of your mixes.

There's also premium 24-bit Alesis effects - ideal for any mixing situation. Over 100 DSP effects are available at your fingertips: from its delay to its reverb; its flanger to its chorus - you won't find anything is missing. And with a range of presets, get started with any of the effects with ease.

Features

• each of the five XLR inputs have premium DNA™ microphone preamps
• Kee your signal flow in check with dynamic analog compression (channels 1-2)
• 3-band EQ and two aux sends for each individual channela
• Tactile control using 60mm faders
• Connect to computers with USB interfacing
• Apply 100 different Alesis effects to channels
• Shape the output with 9-band graphic EQ for mains or monitors
• Focus in on your mix with the headphone output
• Super-visible colour-coded interface make mixing easy in even the darkest environments

Specifications

• Microphone inputs: Electronically balanced, discrete input configuration
• Frequency response: 20 Hz to 20 kHz, +0.5 dB
• THD+N: Gain range: 0 dB to 45 dB (Mic)
• SNR: 105 dB

Line Inputs

• Frequency response: Electronically Balanced, 20 Hz to 20 kHz, +0.25 dB
• THD+N: Sensitivity range: -15 dBu to 30 dBu

Impedances

• Microphone inputs: 51.1 KΩ
• Channel insert return: 200 KΩ
• All other inputs: >100 KΩ
• 2-Track outputs: 10 KΩ
• All other outputs: 20 KΩ

Equalization

• High-shelving: ±15 dB @ 12 kHz
• Mid-bell (mono): ±15 dB @ 2.5 kHz
• Low-shelving: ±15 dB @ 80 Hz
• Main EQ: 9 EQ bands (63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz), ±15 dB

DSP Section (DFX)

• A/D & D/A converters: 24-bit
• DSP Resolution: 24-bit
• Effects: 10 DSP effects families with 10 variations available per family
• Presets: 100 total
• Controls: Rotary encoder to select preset, DSP mute switch, peak LED indicator

Main Mix

• Noise (bus noise): Fader 0 dB, channels muted: -102 dBr (ref: +4 dBu), Fader 0 dB, all input channels assigned & set to unity gain: -91 dBr (ref: +4 dBu)
• Phantom Power: Mic Pin2/Pin3 and Pin1 47±2V

Power Supply

• Main voltage: 240 VAC 50 Hz
• Power consumption: 45 W
• Fuse: 1.25 A
• Main connection: Standard IEC Receptacle

Physical

• Dimensions (w x d x h): 12.0" x 13.6" x 3.1" / 305 mm x 346 mm x 80 mm
• Weight: 7.7 lbs. / 3.5 kg
